The Fareast 23R has been designed to meet the need for an attractive and fast club racing boat. With the pedigree and the lines of the “bigger sister” the 28R, the 23R is just a bit smaller which makes it easier to tow around and launch from a ramp.

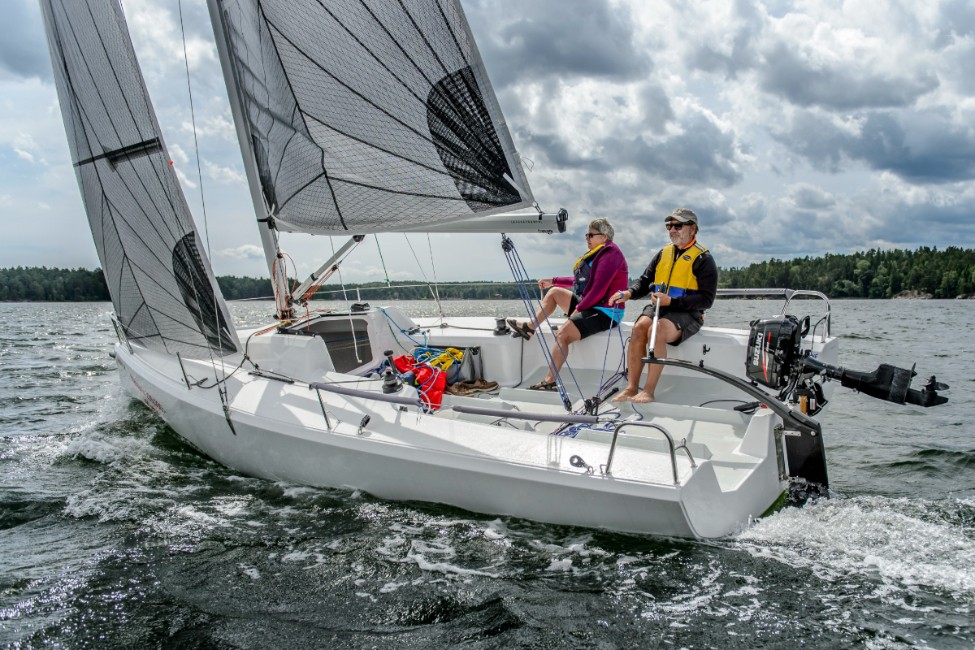

Side view

Front view

Cockpit

Bow

Cockpit

Side view

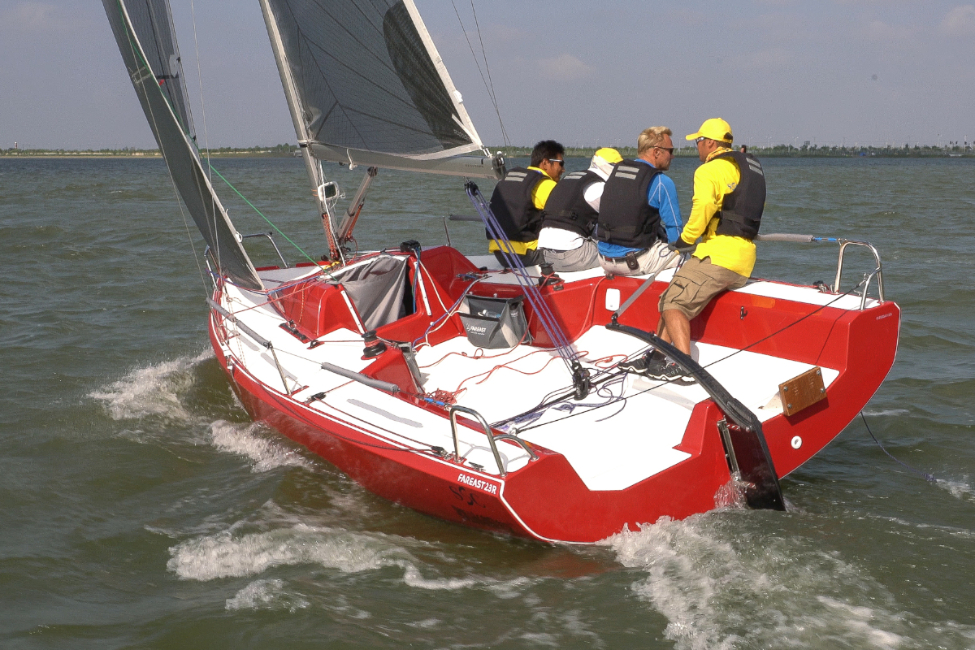

Aft view

  • Price from TBA
  • Brand FAREAST
  • Model 23R
  • Designer Simonis Voogd
  • Length overall 7.28 m
  • Length 6.97 m
  • Draft max 1.40 m
  • Beam 2.55 m
  • Mast height 78.82 m
  • Loaded displacement 1399 kg
  • Downwind sail 80.00 m2
  • Upwind sail 31.00 m2
  • Engine Outboard
  • CE certificate Class C
  • Color White, red, black, blue or yellow
  • CONSTRUCTION

    HULL
    Vacuum infused sandwich hull with
    isopolyeseter resin.
    White hull.
    Powerful inner structure distributes all loads
    from keel and rigging.

    KEEL
    1.40m lifting T- shaped keel with carbon fin,
    lead bulb.

    RUDDER
    Carbon rudder and tiller, with extension.

    DECK
    Sandwich build deck with anti-slip surface
    Reinforced laminate plates at mounting
    positions of deck fittings.

    INTERIOR
    1 PCS Quick-Access utility pockets.

    WATER SYSTEM
    Manual bilge pump in cockpit.

    MAST AND RIGGING

    MAST
    Selden aluminum mast and foot, 1 Set of aft
    swept spreaders. Selden boom with outhaul,
    1 reefing line Vang system with Harken cleats
    and blocks.

    STANDING RIGGING
    Selden S/S standing rigging. Selden forestay.

    RUNNING RIGGING
    1 Main halyard
    1 Jib halyard
    1 Gennaker halyard
    1 Cunningham line
    1 Outhaul line
    2 Jib Sheets
    1 Main sheet controls 4:1 Gennaker sheets,
    blocks and cleats.

    DECK

    DECK EQUIPMENT
    1 Deck organizer
    1 Set of cleats
    2 Jib sheet winches Harken 20.2
    2 Jib sheet tracks with cars Mainsail
    track with traveler 3:1 and control lines
    300mm Pulpits in S/S and stanchions with
    lifelines
    2 Ropes and winch store bags
    Gennaker drop bag Companion way cover

    SAILS
    Red Rum Sails main in black
    polyester laminate
    Red Rum Sails jib in black polyester laminate
    Red Rum Sails Gennaker Nylon 0.75 OZ

    MISCELLANEOUS
    1 winch handle.
    Owner’s manual.
    Outboard engine bracket max 25kg.
    Companion way cover.
